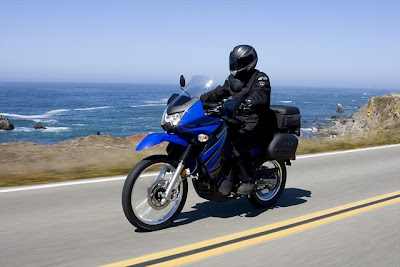

2009 KLR™ 650

Engine Four-stroke, DOHC, four-valve single

Displacement 651cc

Bore x stroke 100.0 x 83.0mm

Compression ratio 9.8:1

Cooling Liquid

Carburetion Keihin CVK40

Ignition Fully transistorized

Transmission Five-speed

Final drive Chain

Frame Semi-double cradle, high-tensile steel

Rake / trail 28 degrees / 4.4 in.

Front suspension / wheel travel 41mm telescopic fork / 7.9 in.

Rear suspension / wheel travel UNI-TRAK® single-shock system with 5-way preload and stepless rebound damping / 7.3 in.

Front tire 90/90x21

Rear tire 130/80x17

Front brake / rear brake Single 280mm petal-type disc, two-piston caliper / single 240mm disc, single-piston caliper

Overall length 90.4 in.

Overall width 37.8 in.

Overall height 53.1 in.

Ground clearance 8.3 in.

Seat height 35.0 in.

Curb weight 432 lbs.

Fuel capacity 6.1 gal.

Wheelbase 58.3 in.

Color choices Ebony, Sunbeam Red, Oriental Blue

Good Times™ Protection Plan 12, 24, 36 or 48 months

Warranty 12 Months
